EP Solar Controllers

AN-Series Tracer MPPT Controllers

Models

  • Tracer MPPT 10A AN $105
  • Tracer MPPT 20A AN $169
  • Tracer MPPT 30A AN $209
  • Tracer MPPT 40A AN $259
  • Tracer MPPT 50A AN $435
  • Tracer MPPT 60A AN $699
  • Tracer MPPT 80A AN $759
  • Tracer MPPT 100 AN $930

Tracer-AN series MPPT Solar Controller (10A-40A)

Tracer AN series adopts advanced MPPT technology. It can fast and accurately track the maximum power point (MPP) of photovoltaic array, and obtain the maximum solar energy at any time, to improve solar efficiency.

With Modus communication protocol interface, it is convenient for users to expand applications and meet monitoring requirements in variaous fields like telecommunication base stations, household systems, and lighting systems.

Features (10A-40A)

  • Advanced MPPT technology, with efficiency no less than 99.5%
  • Ultra-fast tracking speed and guaranteed tracking efficiency
  • Advanced MPPT control algorithm to minimise the maximum power point loss rate and loss time.
  • Wide MPPT Operating voltage range
  • High quality components, perfecting system performance, with maximum conversion efficiency of 98%
  • Accurate recognition and tracking of multiple-peaks maximum power point
  • Internationally recognize high quality ST and IR components, to ensure the strong service life.
  • Charging power and current limitation function
  • Compatible with lead-acid and lithium-ion batteries
  • Battery temperature compensation function
  • Real-time energy statistics function
  • Overheating power reduction function
  • Multiple load work modes
  • The communication port adopts professional protection chip, which can provide 5VDC power supply, and has over-current and short-circuit protection.
  • With RS-485 communication bus interface and Modbus communication protocol, it is available to meet various communication requirements in different situations
  • Monitor and set the parameters via mobile app or PV software
  • Full-load operation without any drop in capacity with the range of working environment temperature.
  • Extensive Electronic Protection
ModelTracer 1210 ANTracer 2210ANTracer 3210ANTracer 4210AN
System nominal voltage12/24 VDC Auto 12/24 VDC Auto 12/24 VDC Auto 12/24 VDC Auto
Rated Charge Current10A20A
30A
40A
Rated Discharged Current10A20A30A40A
Max PV input power130W/12V
260W/24V
260W/12V
520W/24V
390W/12V
780/24V
520W/12V
1040W/24V
Battery voltage range8~32V8~32V 8~32V 8~32V
Max. PV open circuit voltage100V
92V
100V
92V
100V
92V
100V
92V
Equalise charging voltageSealed 14.6V, Flooded 14.8,
User-defined 9~17V
Sealed 14.6V, Flooded 14.8,
User-defined 9~17V
Sealed 14.6V. Flooded 14.8, User -defined 9~17V Sealed 14.6V. Flooded 14.8, User -defined 9~17V
Boost charging voltageGel/Sealed/Flooded 13.8V, User-defined 9~17V Gel/Sealed/Flooded 13.8V, User-defined 9~17V Gel/Sealed/Flooded 13.8V, User-defined 9~17V Gel/Sealed/Flooded 13.8V, User-defined 9~17V
Float Charging VoltageGel/Sealed/Flooded:13.8V, User defined 9~17V Gel/Sealed/Flooded:13.8V, User defined 9~17V Gel/Sealed/Flooded:13.8V, User defined 9~17V Gel/Sealed/Flooded:13.8V, User defined 9~17V
Low voltage reconnect voltage Gel/Sealed/Flooded:12.6V, User defined 9~17V Gel/Sealed/Flooded:12.6V, User defined 9~17V Gel/Sealed/Flooded:12.6V, User defined 9~17V Gel/Sealed/Flooded:12.6V, User defined 9~17V
Low voltage disconnect voltageGel/Sealed/Flooded: 11.1V, User defined 9~17V Gel/Sealed/Flooded: 11.1V, User defined 9~17V Gel/Sealed/Flooded: 11.1V, User defined 9~17V Gel/Sealed/Flooded: 11.1V, User defined 9~17V
GroundingCommon negative grounding Common negative grounding Common negative grounding Common negative grounding
Self-consumption <12mA <12mA <12mA <12mA
Temperature compensate coefficient-3mV/C/2V (default) -3mV/C/2V (default) -3mV/C/2V (default) -3mV/C/2V (default)
Dimension172x139x44mm220x154x52mm228x164x55mm252x180x63mm
Weight0.57kg0.94kg1.26kg1.65kg
EnclosureIP32 IP32 IP32 IP32
Working environment temperature -25C ~+50C -25C ~+50C -25C ~+50C -25C ~+50C
Relative humidity<95%, N.C. <95%, N.C <95%, N.C <95%, N.C

Tracer-AN series MPPT Solar Controller (50A-100A)

Tracer AN series with a big current MPPT charge controller is our brand new product, up to 100A. It is based on a multiphase synchronous rectification technology (MSRT), with a dual-core processor architecture and common negative design, features: speed and reliability. This tracer can be used for a wide range of applications such as RV, household systems and field monitoring.

Features (50A – 100A)

  • CE certification (LVD EN/IEC62109, EMC EN61000-6-1/3)
  • Advanced MPPT technology & ultra-fast tracking speed,
  • High tracking efficiency no less than 99.5%
  • Maximum DC/DC transfer efficiency is a high as 98.6%, full load efficiency no less than 98%(Tracer 10415AN@48V systerm)
  • Advanced MPPT control algorithm will minimise the MPP loss rate and loss time
  • The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP
  • Wide range of MPP operating voltage
  • Auto control system to limit the charging power and current go over the rated value
  • Support 4 charging options: sealed, gel, flooded and user
  • Battery temperature compensation function
  • Real-time energy recording and statistical function
  • Automatic over-temperature power reduction function
  • Support up to 8 units in parallel to expand system
  • Load relay control external load switch signal to realize diversified load work modes
  • The first and the second disconnection of load control, contain two relay’s contact.
  • Auto-control of utility and generator relay design
  • Utility or generator auto-control relays make it easy to compose the hybrid power system.
  • The remote temperature and the voltage sensor design will collect accurate data on battery temperature and voltage
  • Can monitor or set parameters by using a phone app or PC software.

Electrical Specifications

Model50A AN60A AN80A AN100A AN
Nominal System voltage12/24/36/48VDC12/24/36/48VDC12/24/36/48VDC12/24/36/48/VDC
Rated Charge Current50A60A80A100A
Max. PV Open Circuit Voltage 200V
180V
200V
180V
200V
180V
200V
180V
MPP Voltage Range(Battery Voltage +2V)~144V (Battery Voltage +2V)~144V (Battery Voltage +2V)~144V (Battery Voltage +2V)~144V
Max. PV input power (W/V)1125/12
2250/24
3375/36
4500/48
1500/12
3000/24
4500/36
600048
1875/12
3750/24
5625/36
7500/48

Equalize Charging Voltage
Sealed 14.6V, Flooded: 14.8V, User -defined 9~17V Sealed 14.6V, Flooded: 14.8V, User -defined 9~17V Sealed: 14.6V, Flooded: 14.8V, User -defined 9~17VSealed: 14.6, Flooded: 14.8V, User-defined 9~17V
Boost Charging VoltageGel:14.2V, Sealed:14.4V, Flooded: 14.6, User-defined 9~17V Gel:14.2V, Sealed:14.4V, Flooded: 14.6, User-defined 9~17V Gel:14.2V, Sealed:14.4V, Flooded: 14.6, User-defined 9~17V Gel:14.2V, Sealed:14.4V, Flooded: 14.6, User-defined 9~17V
Float Charging VoltageGel/Sealed/Flooded: 13.8V, User-defined 9~17VGel/Sealed/Flooded: 13.8V, User-defined 9~17VGel/Sealed/Flooded: 13.8V, User-defined 9~17VGel/Sealed/Flooded: 13.8V, User-defined 9~17V
Low Voltage Reconnect VoltageGel/Sealed/Flooded: 12.6V, User-defined 9~17VGel/Sealed/Flooded: 12.6V, User-defined 9~17VGel/Sealed/Flooded: 12.6V, User-defined 9~17VGel/Sealed/Flooded: 12.6V, User-defined 9~17V
Low Voltage Disconnect VoltageGel/Sealed/Flooded: 11.1V, User-defined 9~17VGel/Sealed/Flooded: 11.1, User-defined 9~17VGel/Sealed/Flooded: 11.1, User-defined 9~17VGel/Sealed/Flooded: 11.1, User-defined 9~17V
Tracking Efficiency>99.5% >99.5% >99.5% >99.5%
Temp. Compensate-3m/VC/2V (default)
Self-Consumption98mA/12V;60mA/24V;50mA/36V;46mA/48V
GroundingCommon negative grounding
RS485 InterfaceRS485(RJ45)
Working Environment Temperature-25C~+60C
Relative Humidity Range5% to 95% (N.C)
EnclosureIP20
Dimensions (LxWxH)(mm)261x216x119340x236x119394x240x134394x242x143
Weight3.5kg4.5kg6.1kg7.4kg

BN Tracer MPPT Controllers

Models

  • 10 Amp MPPT solar controller: $129 inc. GST
  • 20 Amp MPPT solar controller: $199 inc. GST
  • 30 Amp MPPT solar controller: $279 inc. GST
  • 40 Amp MPPT solar controller: $312 inc. GST

Features

  • Peak conversion efficiency of 98%
  • High tracking efficiency up to 99%
  • Die-cast aluminum design and nature cooling
  • Diversified load control to meet different requirements
  • Four battery type options: Sealed, Gel, Flooded, and USER
  • RS485 ports with MODBUS communication protocol
  • Optional PC monitoring software and remote meter for real-time monitoring and battery management parameter setting
  • Field upgradable firmware

Electrical Specifications

Programmable Parameters

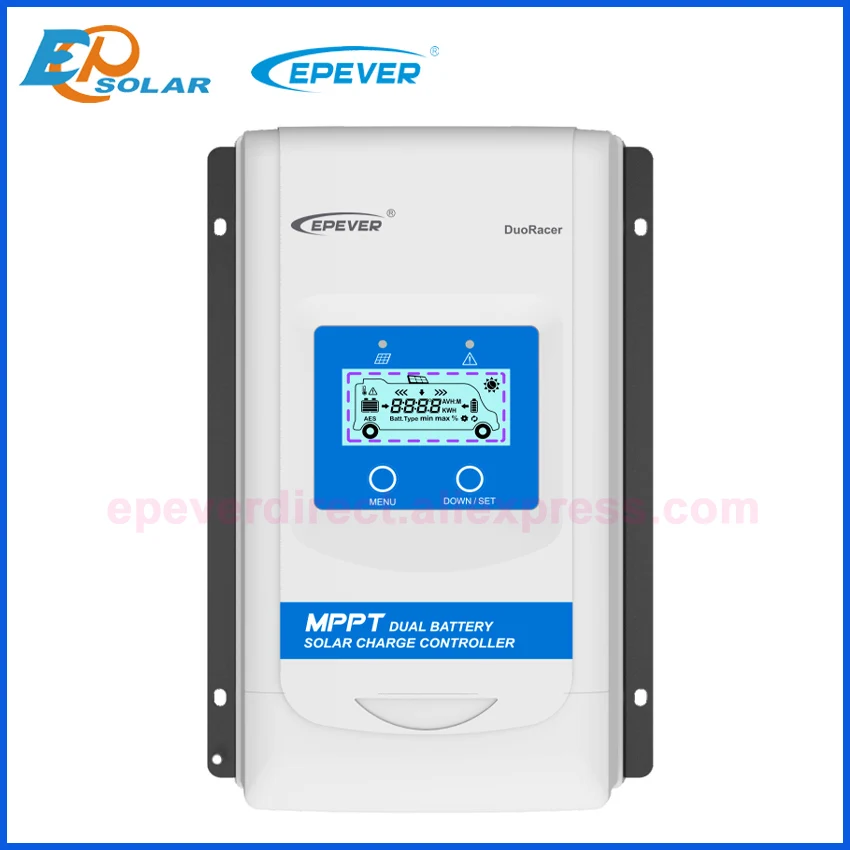

Dual Battery MPPT Solar Controller DuoRacer Battery Regulator

DuoRacer MPPT charge controller is made for charging two batteries at the same time in a solar system. This controller supports multiple life battery types, including Sealed, Gel, Flooded, LiFePO4, and Li-NiCoMn, which is suitable for RV, Camper, Boat, and so on. The device recognizes the start battery system voltage automatically, and trickle charges the battery when the conditions are satisfied. The controller adopts the advanced MPPT control algorithm,which will minimize the maximum power point loss rate and loss time,also fast track the maximum power point(MPP) of the PV array, and obtain the maximum energy from solar array under any conditions. The energy utilization in the MPPT solar system is increased by 20-30% compared with PWM charging method. When there is no manual operation for a long time, and the charging conditions cannot be reached, the controller will turn to low-power mode, which reduces the loss and battery power waste to enhance the products life. The system parameters are shown and set by LED/LCD or the MT11 remote meter (Accessory). The AES control signal of the car refrigerator is built in the controller, which will supply the surplus solar power to the refrigerator to avoid energy waste. The controller comes with IP33 protection level, which is waterproof and dustproof. Multiple protection features, including battery overcharge protection, over discharge protection, and reverse connection protection of the PV and battery, which effectively ensure the solar system safety, stability, and lifetime.

Dual Racer MPPT Dual Battery Solar Charge Controller

XTRA Series (10-40A)

  • XTRA 1210N $123
  • XTRA 2210N $160
  • XTRA 3215N $245
  • XTRA 4215N $290
XTRA SERIES 12/24VDC, 12/24/36/48VDC 10-40A

Product Highlights

  • MPPT tracking efficiency above 99.5%
  • Maximum charge conversion efficiency as high as 97.4%
  • Support lead-acid and lithium-ion batteries
  • Multiple load work modes
  • Charging power and current limitation function
  • High –temperature charging power derating function
  • Optional LCD display units (XDB1/XDS1/XDS2) and accessories
  • Isolated RS485 communication port with standard Modbus protocol
  • Real-time energy statistics function
  • IP33 protection class design
  • CE certification(LVD IEC62109,EMC EN3/1-6-61000

MT-50 Meter for Tracer BN and A-Series controllers

Price: $59 inc. GST

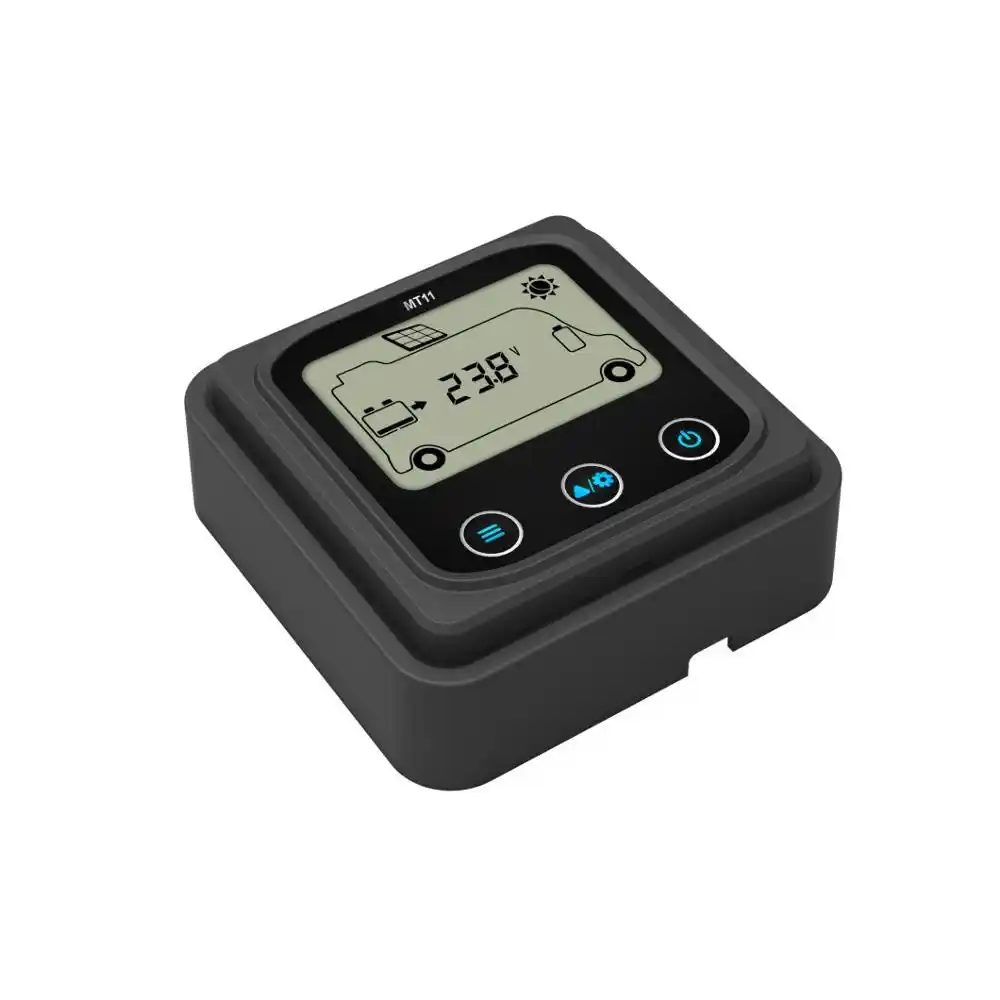

Tracer MT11 Meter

Price $69 incl GST

The MT series remote meter is an accessory which is compatible with the DuoRacer series controller. It can monitor the running data and working status of the controller via the remote meter. The remote meter can browse the controller’s parameters, set the battery typeand temperature unit, and clean the generated energy.It is suitable for RV, Camper, Boat, and so on.

MT11

Remote Display for Duo Racer Series

ModelMT11
Apply to modelDRN series
Self-consumption(Power on)13mA/5Vdc
Self-consumption(Power off)4mA
Communication wayRS485
Communication port3.81-4P
RS485 cableCC-RS485-RS485-3.81-4P-150(1.5m)CC-RS485-RS485-3.81-4P-500(5m)CC-RS485-RS485-3.81-4P-1000(10m)
Environment temperature-20℃~+70℃
Storage temperature range-20℃~+70℃
EnclosureIP20
Dimension98.4×98.4mm
Base cover dimension114×114mm
Weight0.11kg

eLog-01

Price: $75 incl GST

eLog-01

Product Highlights:

  • Compatible with PC soft eLOG01 ware & MT50 for real-time monitoring.
  • Powered up by controller communication interface.
  • Connect to PC via USB interfaces with high compatibility.
  • Record & download system data.
  • LED Indicator design, more intuitive display

eBox-BLE

Price: $29 Incl GST

  • Realize wireless monitoring function of solar controller and inverter
  • Support mobile phone APP, plug and play, simple and convenient to set
  • Use high performance, ultra-low power consumption Bluetooth dedicated chip
  • Adopt Bluetooth 4.0 and BLE technology
  • Fast communication, strong anti-interference ability
  • No need of external power supply
  • Communication distance up to 10m
  • Master reset adapter

Epever eBox-Wifi

The eBox-WIFI-01 lets you wirelessly monitor and set parameters on your charge controller and inverter via WiFi, using a mobile phone APP.

The application can be downloaded from the Epever site: http://www.epsolarpv.com/en
Current support only for Android and iOS, Google Play Coming Soon

Compatible WITH A or BN series Tracer Solar Controller, and SHI series inverter
