    Compact 5W mono-crystalline solar panel designed for small off-grid applications. Lightweight, durable, and built with high-transmission tempered glass for reliable performance in all conditions.
    $25.99
    Incl. GST
    • Ships by next working day
    • Free specification service
    • In business for over 30 years
    Group_52984560
    Created by Martin Marksteinfrom the Noun Project

    Lifetime Product Support

    Our Solar Engineers are available to answer any questions you may have about the products you have purchased from us
    seanz-logo
    5W Mono Solar Panel
    $25.99
    Incl. GST
    Description
    Features
    Specifications
    SEANZ Authorised Installers

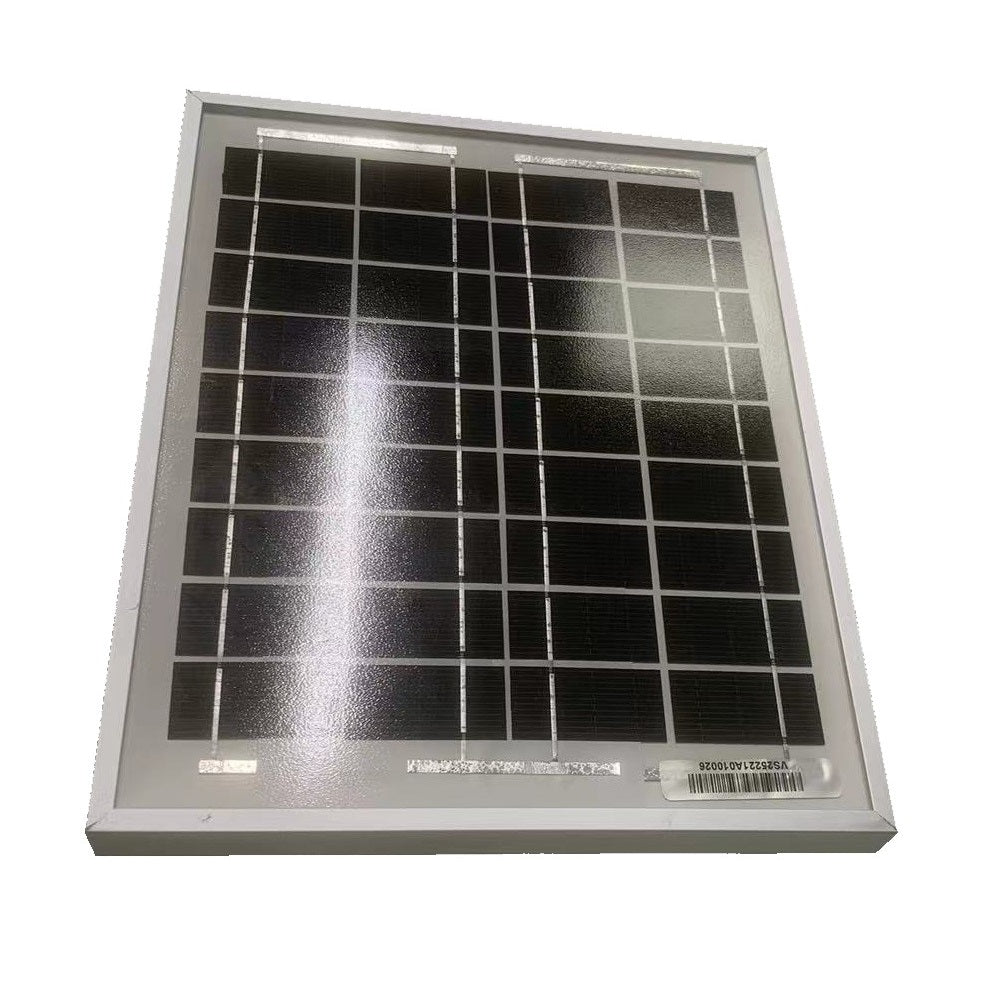

    The 5W Mono-Crystalline Solar Panel is a compact, high-efficiency solution ideal for maintaining small batteries, powering low-draw devices, or supporting off-grid electronics. Its 36-cell monocrystalline design ensures stable performance and a strong power output even in varied light conditions.

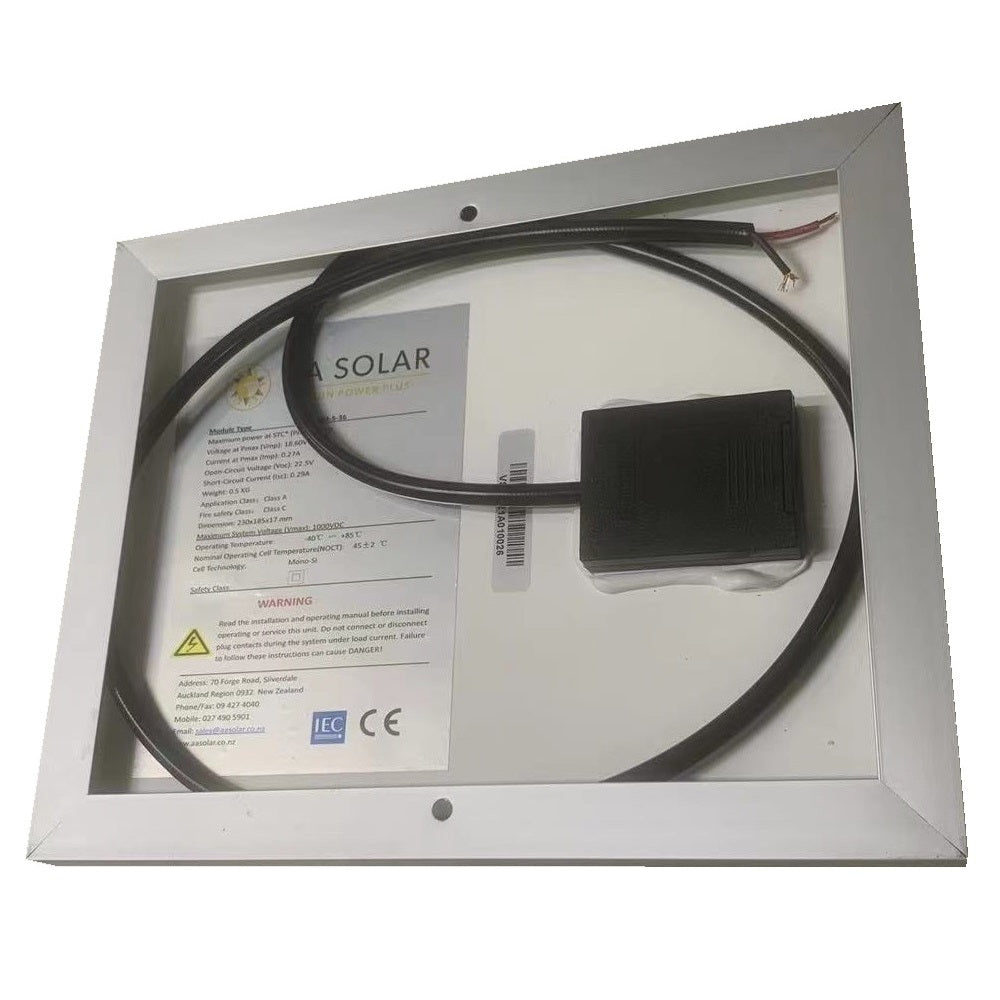

    Built with durable 3.2 mm tempered ARC glass and a corrosion-resistant aluminium frame, this panel is engineered to withstand harsh outdoor environments. With an operational temperature range of –40°C to +85°C and an IP67-rated junction box, it’s suitable for long-term, reliable use in marine, camping, remote monitoring, or DIY solar projects.

    Weighing only 0.50 kg and measuring just 245 × 185 × 17 mm, the FSM005W-36M is ultra-portable, easy to integrate into custom builds, and perfect for small-scale renewable energy setups.

    • 25-year warranty for 80% of output.
    • 10-year limited mechanical warranty

    • 5W Mono-Crystalline Output – Efficient 36-cell (4×9) design provides consistent performance in a compact size.

    • Durable Construction – 3.2 mm high-transmission, low-iron tempered ARC glass maximises light absorption and protects against impacts.

    • Lightweight & Compact – Only 0.50 kg and small footprint for easy mounting in tight spaces.

    • Wide Temperature Tolerance – Operates reliably from –40°C to +85°C.

    • High Safety Ratings – IP67 junction box, 1000 VDC max system voltage, and 10A fuse rating.

    • Customisable Cabling – Flexible cable configuration options to suit specialised setups.

    • Positive Power Tolerance (0~+3%) – Ensures you always receive the rated output or better.

    Electrical Data STC
    Peak Power (Pmax) 5W
    Maximum Power Voltage (Vmp) 18.60V
    Maximum Power Current (Imp) 0.27A
    Open Circuit Voltage (Voc) 22.60V
    Short Circuit Current (Isc) 0.29A



    Temperature & Maximum Rating
    Maximum System Voltage 1000VDC
    Power Tolerance 0~+3%
    Voc Temperature Coefficients (V/°C) -0.290 %/°C
    Isc Temperature Coefficients (A/°C) +0.05 %/°C
    Operational Temperature -40%>+85°C



    Mechanical Characteristics
    Cell Type Mono-crystalline
    No. of Cells 36 (4x9)
    Dimensions 245x185x17mm
    Weight 0.50kg
    Front Glass 3.2 mm, High Transmission, Low Iron, Tempered ARC Glass
    Frame Anodized Aluminium, Silver
    Junction Box IP67
    Output Cables 0.75mm² cable 90cm (no connectors)



    As an authorised SEANZ Parts Supplier and Installer, we require all solar parts covered by AS/NZS Standards 4509, 4777, 5033 and 5139. (This excludes mobile or motorhomes and marine kitsets/products that do not require 230V AC componentry), to be sent to a SEANZ-authorised installer, registered electrician, or professional installer for implementation to ensure all safety standards are met and to remove all potential risks and dangers for the end consumer.
