Tracer-AN Series MPPT Solar Charge Controller

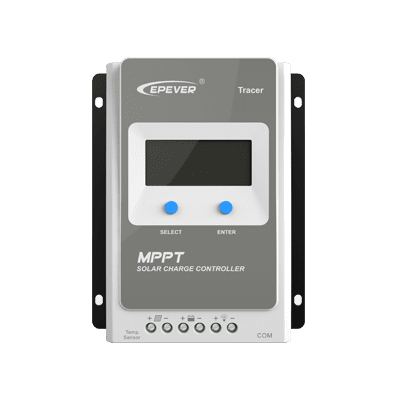

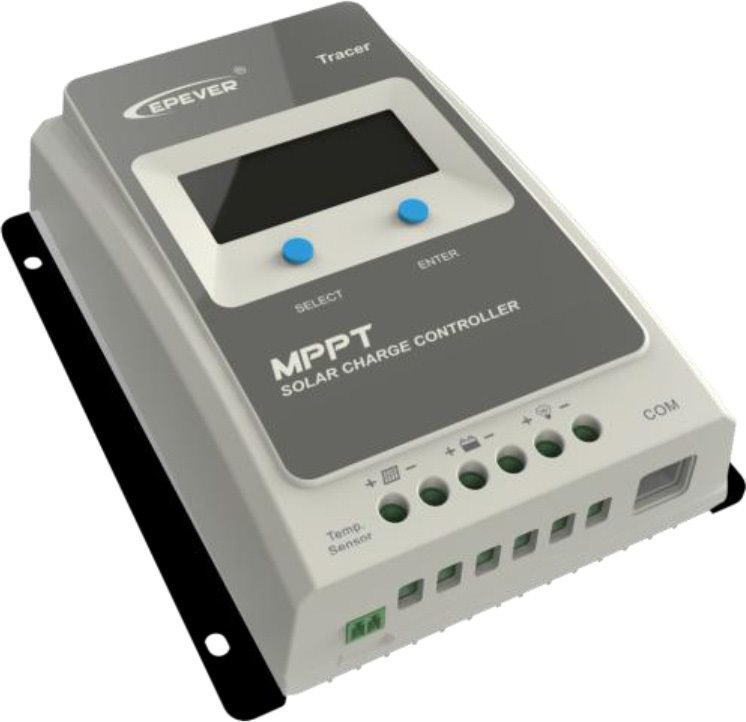

Tracer-AN Series MPPT Solar Charge Controller (10A-40A) by Epever
Tracer-AN Series MPPT Solar Charge Controller (10A-40A) by Epever

Tracer-AN Series MPPT Solar Charge Controller (10A-40A) by Epever

Quickly and accurately tracks the maximum power point (MPP) of a PV array to deliver maximum solar energy and improve solar efficiency, Suitable for remote communications, RVs, household systems and field monitoring.  AA Solar is NZ’s only Authorised Distributor and Service Agent for genuine Epever Solar Charge Controllers.
Amps
  • 10A
  • 20A
  • 30A
  • 40A

Tracer 4210AN MPPT 40A Solar charge controller 12/24V Epsolar

$238.99
Incl. GST
  • Ships by next working day
  • Free specification service
  • In business for over 30 years
Group_52984560

Lifetime Product Support

Our Solar Engineers are available to answer any questions you may have about the products you have purchased from us
Tracer-AN Series MPPT Solar Charge Controller (10A-40A) by Epever
$238.99
Incl. GST

Description

Features

Specifications

Tracer-AN Series MPPT Solar Charge Controller (10A-40A) by Epever, can quickly and accurately track the maximum power point (MPP) of the photovoltaic array and obtain the maximum solar energy at any time to improve solar efficiency.

With the Modbus communication protocol interface, users can expand applications and meet monitoring requirements in various fields, such as telecommunication base stations, household systems, field monitoring, and lighting systems.

Models: Tracer1210AN, Tracer2210AN, Tracer3210AN, Tracer4210AN

AA Solar is NZ’s only Authorised Distributor and Service Agent for genuine Epever Solar Charge Controllers.

Tracer-AN Series Features (10A-40A)


  • Advanced MPPT technology by Epsolar provides efficiency at no less than 99.5%
  • Ultra-fast tracking speed and guaranteed tracking efficiency
  • Advanced MPPT control algorithm to minimise the maximum power point loss rate and loss time
  • Wide MPPT Operating voltage range
  • High-quality components, perfecting system performance, with a maximum conversion efficiency of 98%
  • Accurate recognition and tracking of multiple-peaks maximum power point
  • Internationally recognize high-quality ST and IR components to ensure a strong service life
  • Charging power and current limitation function
  • Compatible with lead-acid and lithium-ion batteries
  • Battery temperature compensation function
  • Real-time energy statistics function
  • Overheating power reduction function
  • Multiple load work modes
  • The communication port adopts a professional protection chip, which can provide a 5VDC power supply and has over-current and short-circuit protection.
  • With the RS-485 communication bus interface and Modbus communication protocol, it is available to meet various communication requirements in different situations.
  • Monitor and set the parameters via mobile app or PV software
  • Full-load operation without any drop in capacity with the range of working environment temperature.
  • Extensive Electronic Protection





Model Tracer1210AN Tracer2210AN Tracer3210AN Tracer4210AN
System nominal voltage 12/24 VDC Auto 12/24 VDC Auto 12/24 VDC Auto 12/24 VDC Auto
Rated Charge Current 10A 20A 30A 40A
Rated Discharged Current 10A 20A 30A 40A
Max PV input power 130W/12V
260W/24V
260W/12V
520W/24V
390W/12V
780/24V
520W/12V
1040W/24V
Battery voltage range 8~32V 8~32V 8~32V 8~32V
Max. PV open circuit voltage 100V
92V
100V
92V
100V
92V
100V
92V
Equalise charging voltage Sealed 14.6V, Flooded 14.8,
User-defined 9~17V
Sealed 14.6V, Flooded 14.8,
User-defined 9~17V
Sealed 14.6V. Flooded 14.8, User -defined 9~17V Sealed 14.6V. Flooded 14.8, User -defined 9~17V
Boost charging voltage Gel/Sealed/Flooded 13.8V, User-defined 9~17V Gel/Sealed/Flooded 13.8V, User-defined 9~17V Gel/Sealed/Flooded 13.8V, User-defined 9~17V Gel/Sealed/Flooded 13.8V, User-defined 9~17V
Float Charging Voltage Gel/Sealed/Flooded:13.8V, User defined 9~17V Gel/Sealed/Flooded:13.8V, User defined 9~17V Gel/Sealed/Flooded:13.8V, User defined 9~17V Gel/Sealed/Flooded:13.8V, User defined 9~17V
Low voltage reconnect voltage Gel/Sealed/Flooded:12.6V, User defined 9~17V Gel/Sealed/Flooded:12.6V, User defined 9~17V Gel/Sealed/Flooded:12.6V, User defined 9~17V Gel/Sealed/Flooded:12.6V, User defined 9~17V
Low voltage disconnect voltage Gel/Sealed/Flooded: 11.1V, User defined 9~17V Gel/Sealed/Flooded: 11.1V, User defined 9~17V Gel/Sealed/Flooded: 11.1V, User defined 9~17V Gel/Sealed/Flooded: 11.1V, User defined 9~17V
Grounding Common negative grounding Common negative grounding Common negative grounding Common negative grounding
Self-consumption <12mA <12mA <12mA <12mA
Temperature compensate coefficient -3mV/C/2V (default) -3mV/C/2V (default) -3mV/C/2V (default) -3mV/C/2V (default)
Dimension 172x139x44mm 220x154x52mm 228x164x55mm 252x180x63mm
Weight 0.57kg 0.94kg 1.26kg 1.65kg
Enclosure IP32 IP32 IP32 IP32
Working environment temperature -25C ~+50C -25C ~+50C -25C ~+50C -25C ~+50C
Relative humidity <95%, N.C. <95%, N.C <95%, N.C <95%, N.C


Manufacturer Specification and Certificates:

Tracer-AN 10A- 40A User Manual.pdf

EPEVER-Datasheet-tracer-an(10A-4OA).pdf

Certificate ROHS Tracer-AN(10-40A).pdf

AA Solar can access EPEVER's full range. See their full range here.
