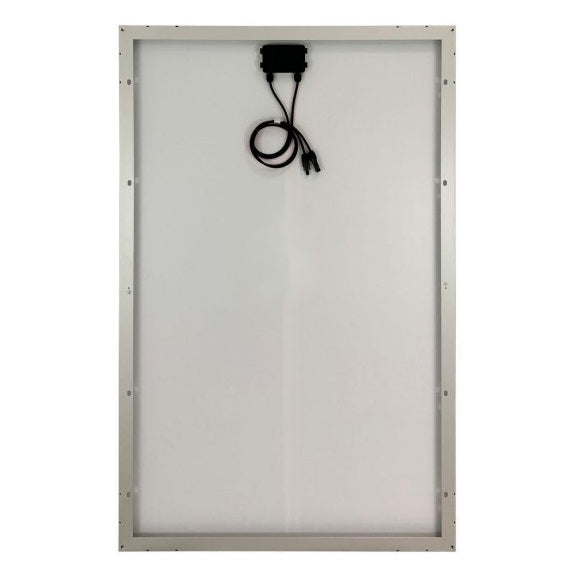

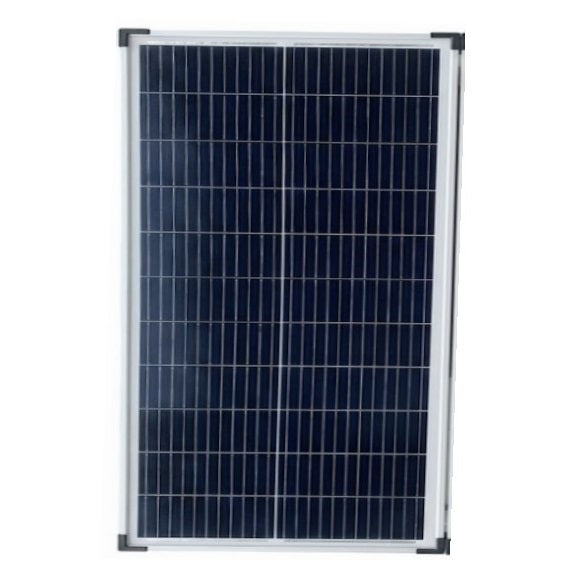

100W PERC Mono PV Solar Panel
- Ships by next working day
- Free specification service
- In business for over 30 years
Lifetime Product Support
Our Solar Engineers are available to answer any questions you may have about the products you have purchased from us
Question about this product?
We're happy to help.
Description
Designed for durability and efficiency, the 100W PERC Mono PV solar panel features high-performance monocrystalline cells and advanced PERC technology for excellent energy output. Built with a robust anodized aluminum frame, tempered glass, and an IP65/IP67-rated junction box, it withstands harsh weather conditions. Lightweight and compact it’s ideal for a wide range of applications. Reliable under extreme temperatures (-40°C to +85°C) with high wind and snow load resistance, this panel delivers dependable power in all environments.
This product must be installed by a registered electrician with a parallel generation/solar endorsement (from September 1st 2025) who can issue a Certificate of Compliance and Electrical Safety Certificate for completed work. AA Solar can provide this comprehensive service. Alternatively, we can work with your chosen SEANZ-endorsed installers and electricians, providing them with the products' Supplier Declaration of Compliance (SDoC) and the supporting documentation they need.
This excludes mobile, motorhome, and marine installs that do not require 230V AC componentry
Features
- High Efficiency: PERC monocrystalline for optimal energy output.
- Durable Design: Anodized aluminum frame and tempered glass.
- Weather-Resistant: IP65/IP67-rated junction box.
- Compact & Lightweight: 1125x455x30mm and just 5.2kg.
Specifications
| Electrical Data STC | |
|---|---|
| Peak Power (Pmax) | 100W |
| Maximum Power Voltage (Vmp) | 18.50V |
| Maximum Power Current (Imp) | 5.40A |
| Open Circuit Voltage (Voc) | 21.30V |
| Short Circuit Current (Isc) | 6.13A |
| Module Efficiency | 19.53% |
| Temperature & Maximum Rating | |
|---|---|
| Maximum System Voltage | 1000V |
| Power Tolerance | 0~+3W |
| Voc Temperature Coefficients (V/°C) | -0.350 %/°C |
| Isc Temperature Coefficients (A/°C) | +0.065 %/°C |
| Operating and Storage Temperature | -40~+85 °C |
| Mechanical Characteristics | |
|---|---|
| Cell Type | Mono-crystalline |
| No. of Cells | 30 |
| Dimensions | 1125x455x30mm |
| Weight | 5.20kg |
| Front Glass | 3.2mm high transmission, low iron, tempered glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP65/IP67 |
| Output Cables | 4mm² cable 90cm (Including MC4 connector) |
SEANZ Installers
As an authorised SEANZ Parts Supplier and Installer, we require all solar parts covered by AS/NZS Standards 4509, 4777, 5033 and 5139. (This excludes mobile or motorhomes and marine kitsets/products that do not require 230V AC componentry), to be sent to a SEANZ-authorised installer, registered electrician, or professional installer with parallel generation/solar endorsement (from September 1st, 2025) to ensure all safety standards are met and to remove all potential risks and dangers for the end consumer.
Provider Directory - Sustainable Energy Association of New Zealand
Please call us on 09 887 9767 to discuss the legal requirements for system design, installations, and commissioning. This includes the Supplier Declaration of Compliance (SDoC), Certificate of Compliance (CoC), Electrical Safety Certificate (ESC), Record of Inspection (ROI), Distributed Generation Application (DG Application) under the EDB network (Electrical Distribution Business), and the electricity retailer's approval.
Key Requirements:
-
The installer must provide a Certificate of Compliance (CoC) for the work they completed to ensure the installation is compliant with 5033, 4777, and 4509. (where applicable and within 20 working days)
-
An independent inspector must inspect the installation and complete the Record of Inspection. (ROI). Within 20 working days
-
The installing electrician or inspector must also sign an Electrical Safety Certificate (ESC) before final connection to the network.
-
The registered electrician signing off the COC and or ESC must have a mains parallel generator endorsement on their practising licence (from September 1st 2025)
-
It is the inspector's responsibility to enter the ROI on the High-Risk database within 20 working days of issuing the ROI.
We can arrange everything for you or work with your chosen qualified solar installer.
