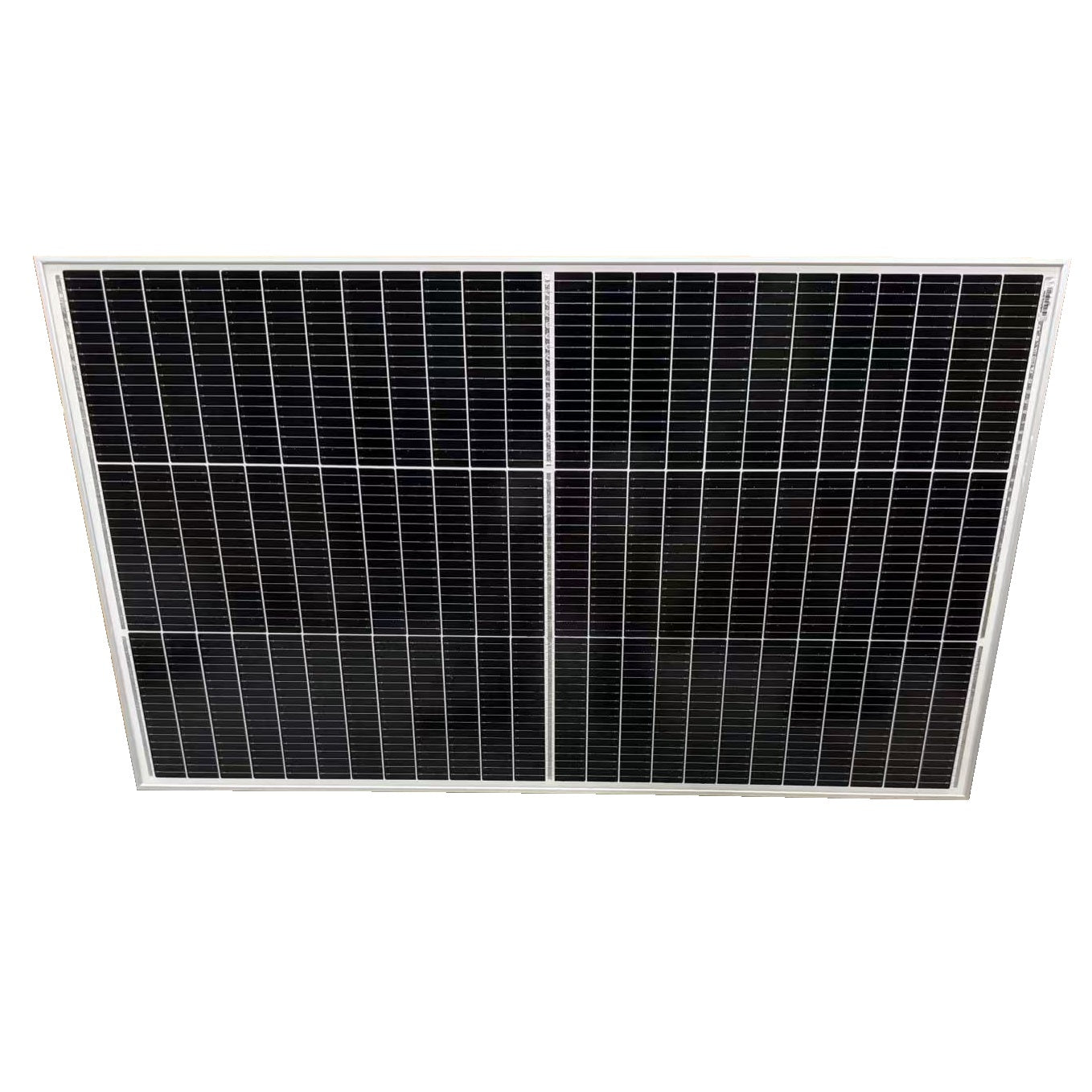

145W Topcon Half Cut PV Solar Panel
- Ships by next working day
- Free specification service
- In business for over 30 years
Lifetime Product Support
Our Solar Engineers are available to answer any questions you may have about the products you have purchased from us
Question about this product?
We're happy to help.
Description
145W Topcon Half Cut PV Solar Panel is a tier-one product featuring outstanding performance and mechanical warranties.
AA Solar's Outstanding Warranties:
- 25-year Performance Warranty to 80%
- 10-year Performance Warranty to 90%
- 5-year Warranty Against Production and Material Defects
This product must be installed by a certified electrician who can issue a Code of Compliance for completed work. AA Solar can provide this service, or you can choose from anyone on the SEANZ-endorsed installers and electricians list. This excludes mobile, motorhome, and marine installs that do not require 230V AC componentry.
TOPCon - Tunnel Oxide Passivated Contact
A TOPCon solar panel is a high-efficiency photovoltaic panel that uses Tunnel Oxide Passivated Contact (TOPCon) technology to reduce electron recombination and boost energy conversion efficiency compared to traditional PERC panels.
Half-Cut Solar Cells
Half-cell solar panels feature cells cut in half, reducing electrical resistance and mechanical stress—this design increases durability, minimizes energy loss, and allows the top and bottom halves to operate independently for higher performance, especially in partial shade.
AA Solar Selection
AA Solar has been supplying Solar Panels to the New Zealand market for over 20 years. Over this time, we have used, researched and tested many solar panels from a variety of manufacturers and believe their range today is the best quality A-grade panels that can be found. Our extensive first-hand experience with these panels over the years is evidence that these panels will perform as per specification over their 25-year life span. In addition, AA Solar backs these products with warranties so our customers can enjoy the benefits and peace of mind knowing that your 145W Half Cut Topcon PV Solar Panel can be relied on now and for many years to come.
Specifications
| Electrical Data STC | |
|---|---|
| Peak Power (Pmax) | 145W |
| Maximum Power Voltage (Vmp) | 22.30V |
| Maximum Power Current (Imp) | 6.50A |
| Open Circuit Voltage (Voc) | 25.90V |
| Short Circuit Current (Isc) | 7.31A |
| Module Efficiency | 19.32% |
| Temperature & Maximum Rating | |
|---|---|
| Maximum System Voltage | 1000V |
| Power Tolerance | 0~+3% |
| Voc Temperature Coefficients (V/°C) | -0.350 %/°C |
| Isc Temperature Coefficients (A/°C) | +0.065 %/°C |
| Mechanical Characteristics | |
|---|---|
| Cell Type | Topcon |
| No. of Cells | 72 (4x18) |
| Dimensions | 1120x670x30mm |
| Weight | 7.50kg |
| Front Glass | 3.2mm safety glass |
| Frame | Anodized Aluminium |
| Junction Box | IP65 |
| Output Cables | 4mm² cable 90cm (Including MC4 connector) |
SEANZ Authorised Installers
As an authorised SEANZ Parts Supplier and Installer, we require all solar parts covered by AS/NZS Standards 4509, 4777, 5033 and 5139. (This excludes mobile or motorhomes and marine kitsets/products that do not require 230V AC componentry), to be sent to a SEANZ-authorised installer, registered electrician, or professional installer for implementation to ensure all safety standards are met and to remove all potential risks and dangers for the end consumer.
Provider Directory - Sustainable Energy Association of New Zealand
Please call us on 09 887 9767 to discuss the legal requirements surrounding system design, installations, and commissioning. This includes all necessary design work, CoC, ROI, EDB network connection process approval, and approval from the electricity retailer.
We can arrange everything for you or work with your chosen qualified solar installer.
