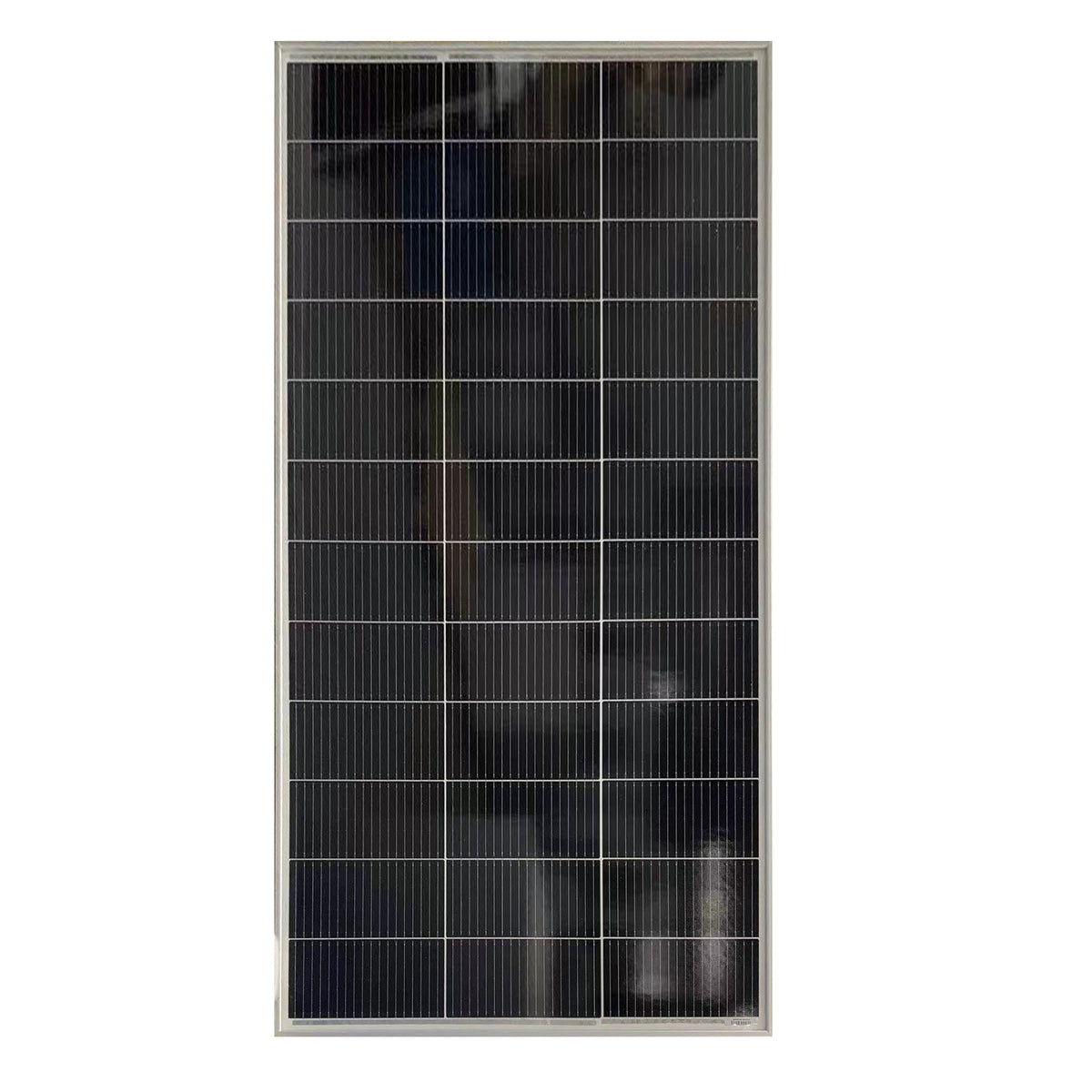

180W Mono TOPCon PV Solar Panel
- Ships by next working day
- Free specification service
- In business for over 30 years
Lifetime Product Support
Our Solar Engineers are available to answer any questions you may have about the products you have purchased from us
Question about this product?
We're happy to help.
Description
The AAS180W-36M solar panel is a high-performance 180W monocrystalline solar panel designed for efficiency and durability. With 36 high-quality cells and an anodized aluminum frame, it ensures reliable energy output for residential, commercial, and off-grid applications. This panel delivers optimal performance even in harsh weather conditions, with a sturdy tempered glass surface, IP65-rated junction box, and MC4-compatible cables. Its advanced electrical characteristics provide a high power tolerance of 0~+3%, ensuring stable energy production.
This product must be installed by a registered electrician with a parallel generation/solar endorsement (from September 1st 2025) who can issue a Certificate of Compliance and Electrical Safety Certificate for completed work. AA Solar can provide this comprehensive service. Alternatively, we can work with your chosen SEANZ-endorsed installers and electricians, providing them with the products' Supplier Declaration of Compliance (SDoC) and the supporting documentation they need.
This excludes mobile, motorhome, and marine installs that do not require 230V AC componentry.
Key Features
- High Efficiency: 180W mono-crystalline panel with optimized power output.
- Durable Construction: Anodized aluminum frame and tempered glass for long-lasting performance.
- Weather-Resistant: IP65-rated junction box for protection against dust and water.
- Reliable Power Output: 0~+3% power tolerance for consistent energy generation.
- Versatile Applications: Suitable for residential, commercial, and off-grid installations.
Specifications
| Electrical Specifications | |
|---|---|
| Rated Power in Watts (Pmax ) | 180Wp |
| Open Circuit Voltage (Voc) | 23.4V |
| Short Circuit Current (Isc) | 10.06A |
| Maximum Power Voltage (Vmp) | 19.8V |
| Maximum Power Current (Imp) | 9.10A |
| Power Tolerance | 0~+3% |
| Mechanical Specifications | |
|---|---|
| Solar Cells | Mono-crystalline |
| Cell Configuration | 36 cells (3x12) |
| Module Dimensions | 1330 x 670 x 30 mm |
| Weight | 9.50kg |
| Superstrate | 3.2 mm, High Transmission, Low Iron, Tempered Glass |
| Substrate | White Back-sheet |
| Frame | Anodized Aluminium Alloy type 6063T5, Silver colour |
| Junction Box | IP65 |
| Cables | 90cm 4mm²cable with MC4 |
| Temperature & Maximum Ratings | |
|---|---|
| Nominal Module Operating Temperature (NMOT) | 45°C +/- 2 |
| Temperature Coefficient of Voc | -0.29% / °C |
| Temperature Coefficient of Isc | 0.05% / °C |
| Temperature Coefficient of Pmax | -0.39% / °C |
| Operational Temperature | -40 ~ +85 °C |
| Maximum System Voltage | 1000VDC |
| Max Series Fuse Rating | 10A |
| Limiting Reverse Current | 10A |
Data Sheet
180W Mono TopCon PV Solar Panel Data Sheet.pdf
SEANZ Installers
As an authorised SEANZ Parts Supplier and Installer, we require all solar parts covered by AS/NZS Standards 4509, 4777, 5033 and 5139. (This excludes mobile or motorhomes and marine kitsets/products that do not require 230V AC componentry), to be sent to a SEANZ-authorised installer, registered electrician, or professional installer with parallel generation/solar endorsement (from September 1st, 2025) to ensure all safety standards are met and to remove all potential risks and dangers for the end consumer.
Provider Directory - Sustainable Energy Association of New Zealand
Please call us on 09 887 9767 to discuss the legal requirements for system design, installations, and commissioning. This includes the Supplier Declaration of Compliance (SDoC), Certificate of Compliance (CoC), Electrical Safety Certificate (ESC), Record of Inspection (ROI), Distributed Generation Application (DG Application) under the EDB network (Electrical Distribution Business), and the electricity retailer's approval.
Key Requirements:
- The installer must provide a Certificate of Compliance (CoC) for the work they completed to ensure the installation is compliant with 5033, 4777, and 4509. (where applicable and within 20 working days)
- An independent inspector must inspect the installation and complete the Record of Inspection. (ROI). Within 20 working days
- The installing electrician or inspector must also sign an Electrical Safety Certificate (ESC) before final connection to the network.
- The registered electrician signing off the COC and or ESC must have a mains parallel generator endorsement on their practising licence (from September 1st 2025)
- It is the inspector's responsibility to enter the ROI on the High-Risk database within 20 working days of issuing the ROI.
We can arrange everything for you or work with your chosen qualified solar installer.
