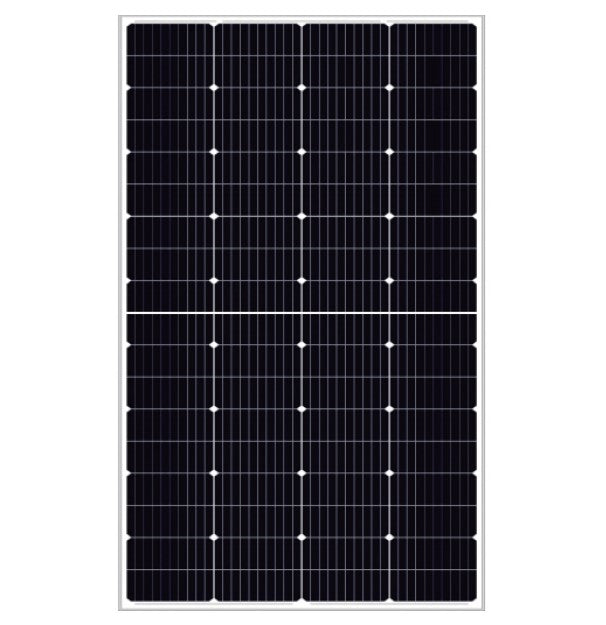

230W PERC Mono Half Cut PV Solar Panel

230W PERC Mono Half Cut PV Solar Panel

230W PERC Mono solar panel: high efficiency, durable, weatherproof, and ideal for versatile use. 1580x705x35mm (LxWxD) Voc 25.46V, Isc 11.44A, Pmax 230W 11.69kg
$276.00
Incl. GST
  • Ships by next working day
  • Free specification service
  • In business for over 30 years
Group_52984560
Created by Martin Marksteinfrom the Noun Project

Lifetime Product Support

Our Solar Engineers are available to answer any questions you may have about the products you have purchased from us
230W PERC Mono Half Cut PV Solar Panel
$276.00
Incl. GST

Description

Features

Specifications

Datasheet

The 230W PERC Mono solar panel combines high efficiency with a robust design, featuring advanced monocrystalline cells for reliable energy output. Built with tempered glass, an anodized aluminum frame, and an IP65/IP67-rated junction box, it delivers excellent performance in all weather conditions. Compact and durable, it is ideal for various energy applications.

  • High Efficiency: PERC monocrystalline for optimal energy output.
  • Durable Design: Anodized aluminum frame and tempered glass.
  • Weather-Resistant: IP65/IP67-rated junction box.
  • Compact Design: 1580x705x35mm.
Electrical Data STC
Peak Power (Pmax) 230W
Maximum Power Voltage (Vmp) 21.22V
Maximum Power Current (Imp) 10.90A
Open Circuit Voltage (Voc) 25.46V
Short Circuit Current (Isc) 11.44A
Module Efficiency  20.65%



Temperature & Maximum Rating
Maximum System Voltage 1000V
Maximum Series Fuse Rating 20A
Power Tolerance 0~+3W
Pmax Temperature Coefficients (W/°C) -0.350 %/°C
Voc Temperature Coefficients (V/°C) -0.270 %/°C
Isc Temperature Coefficients (A/°C) +0.048 %/°C
NOCT Nominal Operating Cell Temperature 45±2 °C
Operating and Storage Temperature -40~+85 °C



Mechanical Characteristics
Cell Type 166x83 Mono
No. of Cells 72 (4x18)
Dimensions 1580x705x35mm
Weight 11.69kg
Front Glass 3.2mm high transmission, low iron, tempered glass
Frame Anodized Aluminium Alloy
Junction Box IP65/IP67
Output Cables 4mm² cable 90cm (Including MC4 connector)
Max. Wind Load / Snow Load 2400Pa/5400Pa

230W Specification Sheet.pdf
