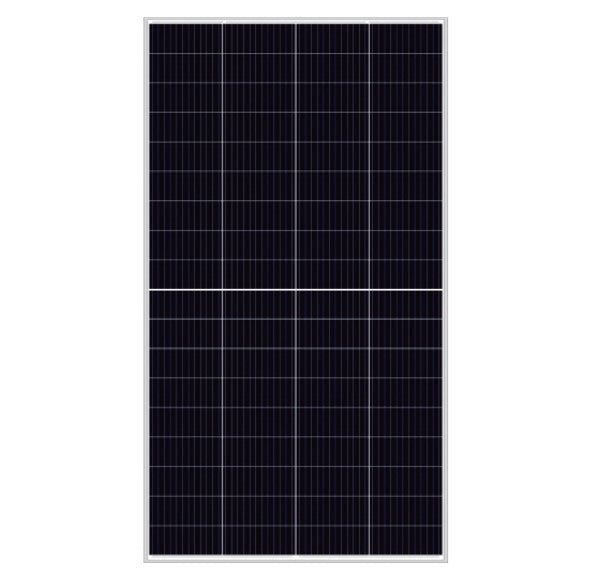

350W Topcon Half Cut PV Solar Panel

The 350W Topcon PV Solar Panel is a tier-one product featuring outstanding performance and mechanical warranties. Delivered anywhere in New Zealand. AA Solar’s Outstanding Warranties: 25-year performance warranty to 80% of output. 10-year performance warranty for 90% of Output. 5-year warranty against production and material defects.
$373.00
Incl. GST
  • Ships by next working day
  • Free specification service
  • In business for over 30 years
Group_52984560

Lifetime Product Support

Our Solar Engineers are available to answer any questions you may have about the products you have purchased from us
350W Topcon Half Cut PV Solar Panel
$373.00
Incl. GST

Description

Specifications

SEANZ Authorised Installers

350W Topcon Half Cut PV Solar Panel is a tier-one product featuring outstanding performance and mechanical warranties.

AA Solar's Outstanding Warranties:

  • 25-year Performance Warranty to 80%
  • 10-year Performance Warranty to 90%
  • 5-year Warranty Against Production and Material Defects

This product must be installed by a certified electrician who can issue a Code of Compliance for completed work. AA Solar can provide this service, or you can choose from anyone on the SEANZ-endorsed installers and electricians list. This excludes mobile, motorhome, and marine installs that do not require 230V AC componentry.



TOPCon - Tunnel Oxide Passivated Contact

A TOPCon solar panel is a high-efficiency photovoltaic panel that uses Tunnel Oxide Passivated Contact (TOPCon) technology to reduce electron recombination and boost energy conversion efficiency compared to traditional PERC panels.



Half-Cut Solar Cells

Half-cell solar panels feature cells cut in half, reducing electrical resistance and mechanical stress—this design increases durability, minimizes energy loss, and allows the top and bottom halves to operate independently for higher performance, especially in partial shade.



AA Solar Selection

AA Solar has been supplying Solar Panels to the New Zealand market for over 20 years. Over this time, we have used, researched and tested many solar panels from a variety of manufacturers and believe their range today is the best quality A-grade panels that can be found. Our extensive first-hand experience with these panels over the years is evidence that these panels will perform as per specification over their 25-year life span. In addition, AA Solar backs these products with warranties so our customers can enjoy the benefits and peace of mind knowing that your 350W Half Cut Topcon PV Solar Panel can be relied on now and for many years to come.



Electrical Data STC
Peak Power (Pmax) 350W
Maximum Power Voltage (Vmp) 22.50V
Maximum Power Current (Imp) 15.55A
Open Circuit Voltage (Voc) 25.90V
Short Circuit Current (Isc) 17.66A
Module Efficiency  20.08%



Temperature & Maximum Rating
Maximum System Voltage 1000V
Power Tolerance 0~+3%
Voc Temperature Coefficients (V/°C) -0.350 %/°C
Isc Temperature Coefficients (A/°C) +0.065 %/°C



Mechanical Characteristics
Cell Type Topcon
No. of Cells 72 (4x18)
Dimensions 1980x880x30mm
Weight 17.40kg
Front Glass 3.2mm safety glass
Frame Anodized Aluminium
Junction Box IP65
Output Cables 4mm² cable 90cm (Including MC4 connector)



As an authorised SEANZ Parts Supplier and Installer, we require all solar parts covered by AS/NZS Standards 4509, 4777, 5033 and 5139. (This excludes mobile or motorhomes and marine kitsets/products that do not require 230V AC componentry), to be sent to a SEANZ-authorised installer, registered electrician, or professional installer for implementation to ensure all safety standards are met and to remove all potential risks and dangers for the end consumer.

Provider Directory - Sustainable Energy Association of New Zealand

Please call us on 09 887 9767 to discuss the legal requirements surrounding system design, installations, and commissioning. This includes all necessary design work, CoC, ROI, EDB network connection process approval, and approval from the electricity retailer.

We can arrange everything for you or work with your chosen qualified solar installer.
