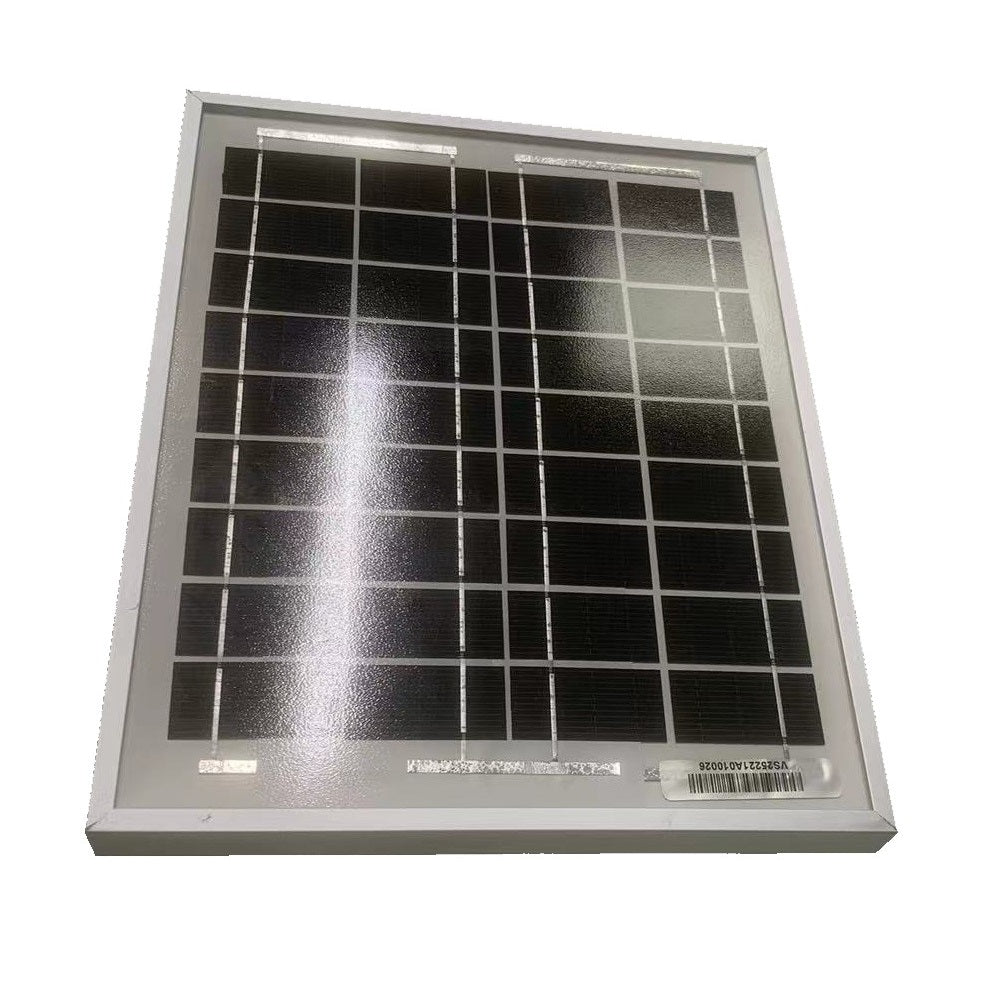

5W Mono Solar Panel
- Ships by next working day
- Free specification service
- In business for over 30 years
Lifetime Product Support
Our Solar Engineers are available to answer any questions you may have about the products you have purchased from us
Question about this product?
We're happy to help.
Description
The 5W Mono-Crystalline Solar Panel is a compact, high-efficiency solution ideal for maintaining small batteries, powering low-draw devices, or supporting off-grid electronics. Its 36-cell monocrystalline design ensures stable performance and a strong power output even in varied light conditions.
Built with durable 3.2 mm tempered ARC glass and a corrosion-resistant aluminium frame, this panel is engineered to withstand harsh outdoor environments. With an operational temperature range of –40°C to +85°C and an IP67-rated junction box, it’s suitable for long-term, reliable use in marine, camping, remote monitoring, or DIY solar projects.
Weighing only 0.50 kg and measuring just 245 × 185 × 17 mm, the FSM005W-36M is ultra-portable, easy to integrate into custom builds, and perfect for small-scale renewable energy setups.
- 25-year warranty for 80% of output.
- 10-year limited mechanical warranty
Features
-
5W Mono-Crystalline Output – Efficient 36-cell (4×9) design provides consistent performance in a compact size.
-
Durable Construction – 3.2 mm high-transmission, low-iron tempered ARC glass maximises light absorption and protects against impacts.
-
Lightweight & Compact – Only 0.50 kg and small footprint for easy mounting in tight spaces.
-
Wide Temperature Tolerance – Operates reliably from –40°C to +85°C.
-
High Safety Ratings – IP67 junction box, 1000 VDC max system voltage, and 10A fuse rating.
-
Customisable Cabling – Flexible cable configuration options to suit specialised setups.
-
Positive Power Tolerance (0~+3%) – Ensures you always receive the rated output or better.
Specifications
| Electrical Data STC | |
|---|---|
| Peak Power (Pmax) | 5W |
| Maximum Power Voltage (Vmp) | 18.60V |
| Maximum Power Current (Imp) | 0.27A |
| Open Circuit Voltage (Voc) | 22.60V |
| Short Circuit Current (Isc) | 0.29A |
| Temperature & Maximum Rating | |
|---|---|
| Maximum System Voltage | 1000VDC |
| Power Tolerance | 0~+3% |
| Voc Temperature Coefficients (V/°C) | -0.290 %/°C |
| Isc Temperature Coefficients (A/°C) | +0.05 %/°C |
| Operational Temperature | -40%>+85°C |
| Mechanical Characteristics | |
|---|---|
| Cell Type | Mono-crystalline |
| No. of Cells | 36 (4x9) |
| Dimensions | 245x185x17mm |
| Weight | 0.50kg |
| Front Glass | 3.2 mm, High Transmission, Low Iron, Tempered ARC Glass |
| Frame | Anodized Aluminium, Silver |

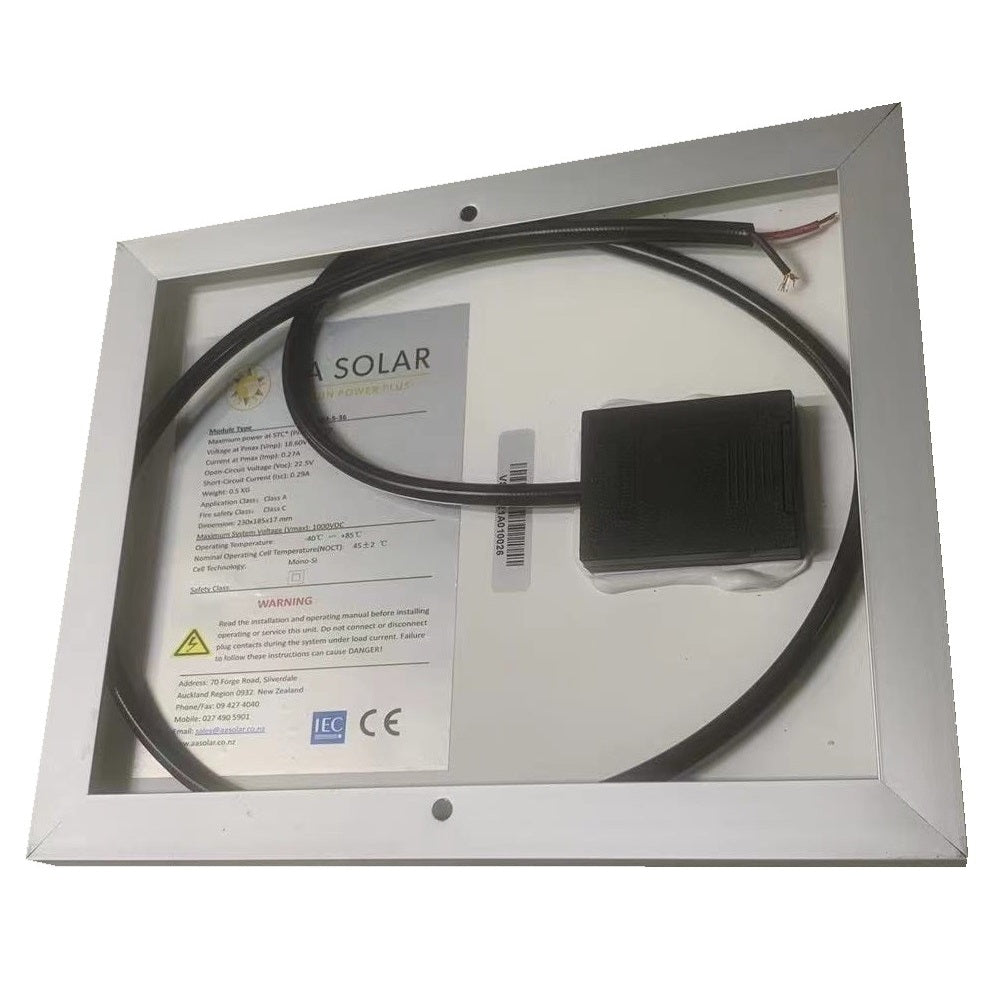

| Junction Box | IP67 |
| Output Cables | 0.75mm² cable 90cm (no connectors) |
SEANZ Authorised Installers
As an authorised SEANZ Parts Supplier and Installer, we require all solar parts covered by AS/NZS Standards 4509, 4777, 5033 and 5139. (This excludes mobile or motorhomes and marine kitsets/products that do not require 230V AC componentry), to be sent to a SEANZ-authorised installer, registered electrician, or professional installer for implementation to ensure all safety standards are met and to remove all potential risks and dangers for the end consumer.
Provider Directory - Sustainable Energy Association of New Zealand
Please call us on 09 887 9767 to discuss the legal requirements surrounding system design, installations, and commissioning. This includes all necessary design work, CoC, ROI, EDB network connection process approval, and approval from the electricity retailer.
We can arrange everything for you or work with your chosen qualified solar installer.
