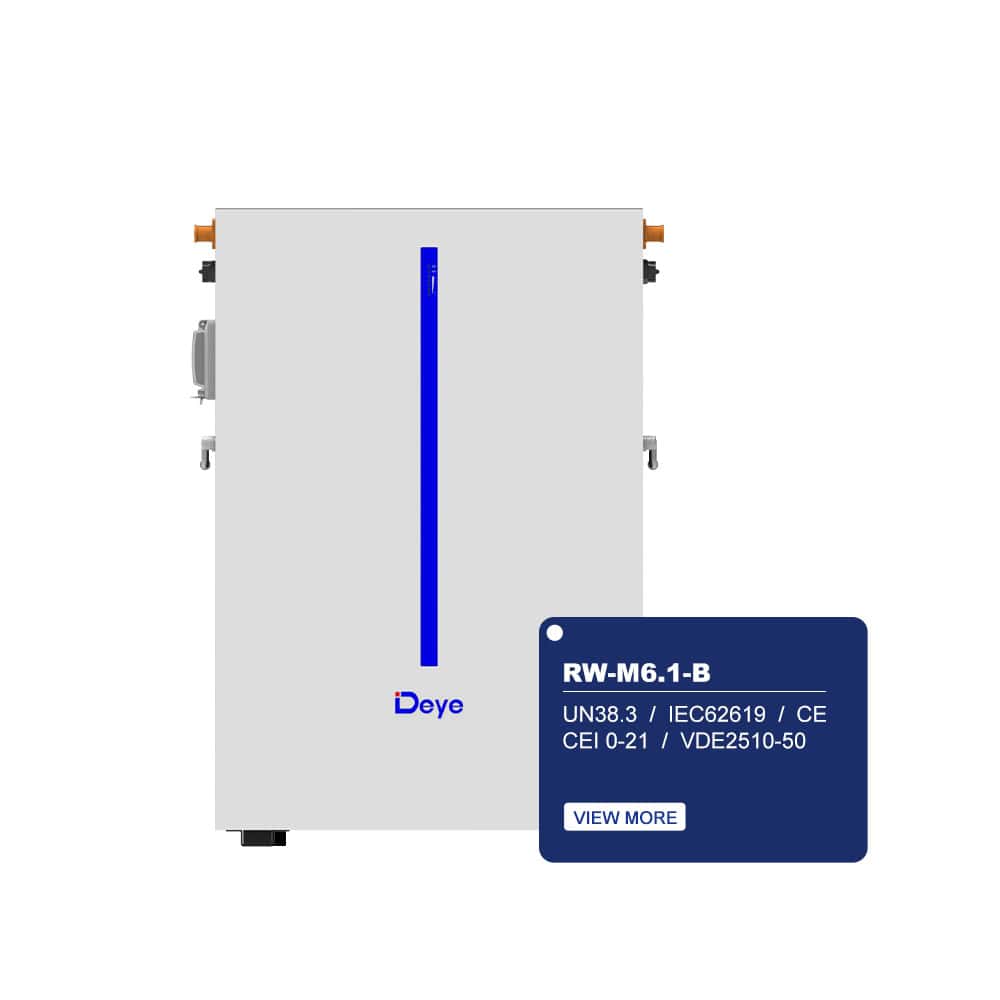

Deye 6.14kWh Low Voltage Wall Mount Battery Pack

listDescription

The Deye RW-M 6.1-B is a state-of-the-art Lithium Iron Phosphate (LFP) battery designed to provide reliable, safe, high-efficiency power storage solutions for residential and commercial applications.  With its advanced Battery Management System (BMS) and modular design, this battery ensures a long lifespan, high power density, and complete protection for your energy storage needs. Warranted for 6,000 cycles.

This product must be installed by a registered electrician with a parallel generation/solar endorsement (from September 1st 2025) who can issue a Certificate of Compliance and Electrical Safety Certificate for completed work. AA Solar can provide this comprehensive service. Alternatively, we can work with your chosen SEANZ-endorsed installers and electricians, providing them with the products' Supplier Declaration of Compliance (SDoC) and the supporting documentation they need.

Key Features:

Safety and Longevity

• • Cobalt-free LFP chemistry ensures safer operation.
  • An intelligent BMS provides comprehensive protection and extends the cycle life.
  • High discharge power support ensures reliability.
  • Warranted for 6,000 cycles.

High Efficiency:

• • High-power density for efficient energy storage.
  • Operating voltage range from 43.2V to 57.6V.
  • Usable energy capacity of 5.53 kWh with a nominal voltage of 51.2V.

Flexible and Scalable:

• • Modular design allows for easy expansion, supporting up to 32 units in parallel.
  • Maximum capacity of 196 kWh.
  • Suitable for various applications with limited installation space and restricted load-bearing.

Convenient and Intelligent:

• • Auto-networking battery modules for effortless maintenance.
  • Remote monitoring and firmware upgrades via USB drive.
  • CAN 2.0 and RS485 communication ports for seamless integration.

Eco-Friendly:

• • Made from non-toxic,pollution-free materials.
  • Designed to be environmentally friendly.

Versatile Installation:

• • Supports both wall-mounted and floor-mounted setups.

  • Saves installation space with a flat design

Robust Construction

• • IP65 rating for a robust enclosure.
  • Operates efficiently within a wide temperature range (-20℃ to 55℃).
  • Cycle life of ≥ 6000 cycles at 25℃.

Specification

Technical Specifications:

• Battery Chemistry: LiFePO4
• Capacity: 120 Ah
• Energy: 6.14 kWh
• Rated DC Power: Peak (2 mins, 25℃) 150 kW
• Dimension (W/H/D): 510 mm 740 mm 145 mm (without base)
• Weight: Approx. 58 kg
• Operating Temperature: Charge: 0～55℃ / Discharge: -20℃～55℃
• Storage Temperature: 0℃～35℃
• Humidity: 5%～95%
• Altitude: ≤ 2000 m
• Warranty Period: 10 years
• Energy Throughput: 20 MWh @ 70% EOL
• Certifications: UN38.3, IEC62619, CE, CEI 0-21, VDE2510-50

Accessories Included:

• Battery Hanging Board (RW-M6.1-B-Hboard): For wall mounting.
• Hybrid Inverter Cable (RW-M6.1-B-PCable1500): 1500mm length, waterproof terminals.
• Battery Parallel Cable (RW-M6.1-B-BCable300): 300mm length, waterproof terminals.
• Fixed Supports (RW-M6.1-B-Fixed support): This is used to secure the battery when floor-mounted.

Downloads

RW M6.1 Datasheet.pdf

RW M6.1 User Manual.pdf

Warranty.pdf

Safety Certificates.pdf

Inverter Capability Statement.pdf

SEANZ Authorised Installers

As an authorised SEANZ Parts Supplier and Installer, we require all solar parts covered by AS/NZS Standards 4509, 4777, 5033 and 5139. (This excludes mobile or motorhomes and marine kitsets/products that do not require 230V AC componentry), to be sent to a SEANZ-authorised installer, registered electrician, or professional installer with parallel generation/solar endorsement (from September 1st, 2025) to ensure all safety standards are met and to remove all potential risks and dangers for the end consumer.

Provider Directory - Sustainable Energy Association of New Zealand

Please call us on 09 887 9767 to discuss the legal requirements for system design, installations, and commissioning. This includes the Supplier Declaration of Compliance (SDoC), Certificate of Compliance (CoC), Electrical Safety Certificate (ESC), Record of Inspection (ROI), Distributed Generation Application (DG Application) under the EDB network (Electrical Distribution Business), and the electricity retailer's approval.

Key Requirements:

• The installer must provide a Certificate of Compliance (CoC) for the work they completed to ensure the installation is compliant with 5033, 4777, and 4509. (where applicable and within 20 working days)
• An independent inspector must inspect the installation and complete the Record of Inspection. (ROI). Within 20 working days
• The installing electrician or inspector must also sign an Electrical Safety Certificate (ESC) before final connection to the network.
• The registered electrician signing off the COC and or ESC must have a mains parallel generator endorsement on their practising licence (from September 1st 2025)
• It is the inspector's responsibility to enter the ROI on the High-Risk database within 20 working days of issuing the ROI.

We can arrange everything for you or work with your chosen qualified solar installer.
