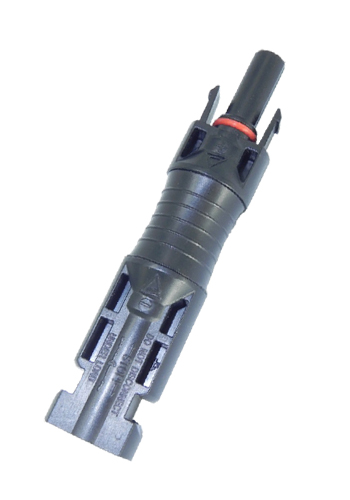

MC4 Solar Diode Connector For Solar Panel Connection
- Ships by next working day
- Free specification service
- In business for over 30 years
Lifetime Product Support
Our Solar Engineers are available to answer any questions you may have about the products you have purchased from us
Question about this product?
We're happy to help.
Description
MC4 Solar Diode Connector is compatible with multi-contact 4 connectors, suitable for solar cables 2.5 mm2, 4mm2, and 6mm2 in solar connection projects.
Enabling quick and reliable connection of the solar cables to the photovoltaic system (solar panels, converters).
MC4 Solar Diode Connector Features
- Compatible with MC4 cable solar connector PV-KBT4/KST4.
- Rated Voltage 1000 VDC
- Rated Current 10A-15A (Diode), 20A-30A MC4 Pins
- 15 Years of production experience in solar connectors
- TUV-approved & Quick, and easy to install
- Protection class IP68 Suitable for outdoor harsh environments
- Stable connection & reduced maintenance cost
Specification
MC4 Solar Diode Connector |
||
|---|---|---|
 |
Product NO. | SY-CM4A-D |
| Insulation material | PPO | |
| Rated Voltage | TUV 1000 DC/ UL 600V DC | |
| Rated Current | 10A-15A ( Diode),20-30A MC4 Pins | |
| Test voltage | 6KV(50Hz,1Min) | |
| Contact material | copper, tin plated | |
| Contact resistance | less than 0.5 m ohm | |
| Degree of protection | IP68 | |
| Pin dimension | 4.0 MM | |
| Compatible Solar cable | 2.5/4.0 /6.0 mm² (14/12/10 AWG) | |
