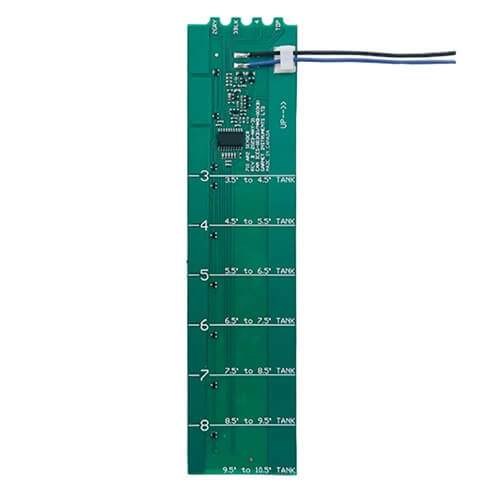

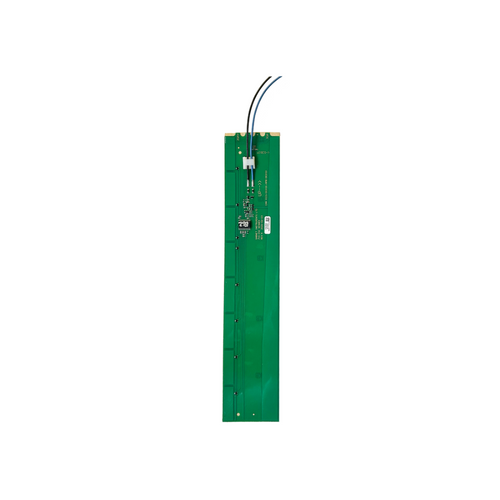

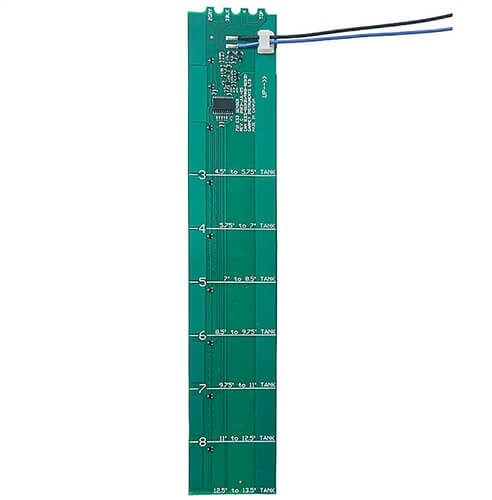

The SeeLeveL II RV Tank Level Senders 710 by Garnet is a flexible, self-adhesive printed circuit board mounted outside the holding tanks. It is available in 6"and 12" lengths. The sender can be cut to match the height of the tanks or double-stacked.
Supplied with SeeLeveL II Tank Level Monitors, additional senders may be required for taller tanks. Available in 6" and12" lengths. The sender can be cut to length to match the height of the tanks or can be double stacked.

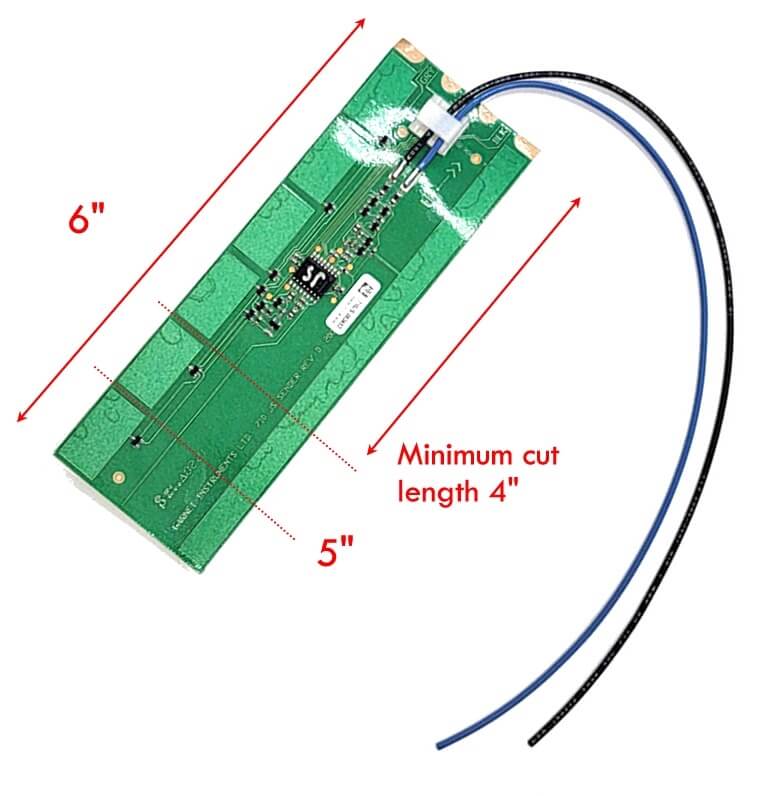

The 710-JS sender measures tanks from 4 1/2” to 7” tall. This 6” sender can be shortened in 1” segments to 4” and provides 1/4” (6 mm) resolution.

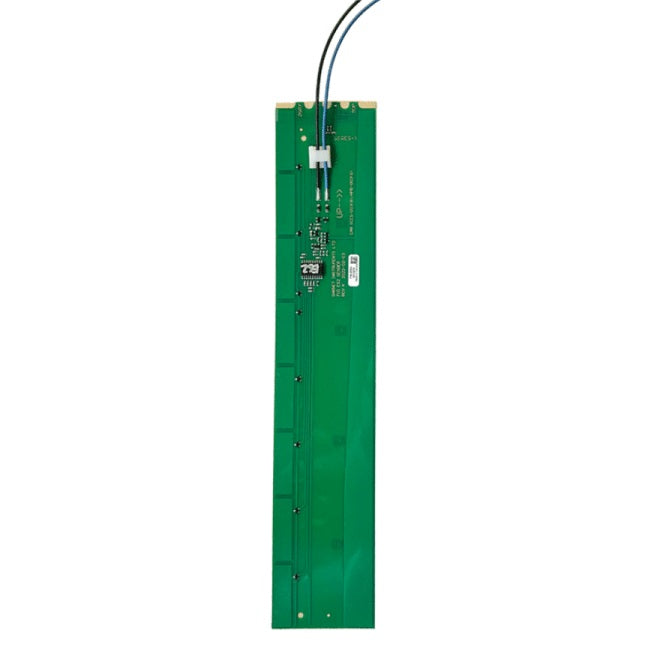

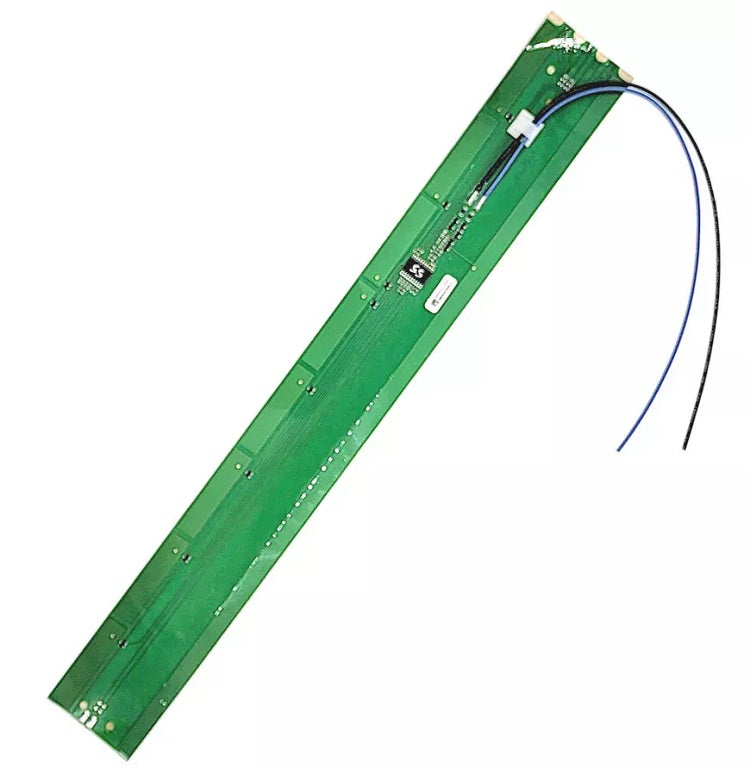

The 710-ES sender measures tanks from 5” to 13“ tall with a single sender and up to 25” tall with dual senders. This 12” sender can be shortened in 1 1/2” segments and provides 3/8” (10 mm) resolution.
The 710-SS sender measures tanks from 7” to 12“ tall with a single sender and up to 34” tall with dual senders. This 16” sender can be shortened in 2” segments to 6” and provides 1/2” resolution.
Tanks over 12" inches may be double-stacked
Note:
- DO NOT mix sender types (sizes) when stacking senders on one tank.
- Senders will work on most plastic or poly-holding tanks that contain any water-soluble products. They will not work on metal tanks.
