Waihi Studio Off-Grid Solar Kitset

$10,930.00

Off-Grid System, 2.73kWp  Solar Panel Array (6x 455W), 9.6kWh (4.8kWh usable) Battery Bank, Inverter/Charger.  Includes a complete set of documentation for electrical registration and sign-off

Every Kitset includes a free consultation with a Solar Engineer, this call can be used to help with selecting the kitset/customisation or advice with respect to installation and certification.

Available For Sale Over The Phone 09 887 9767

Description

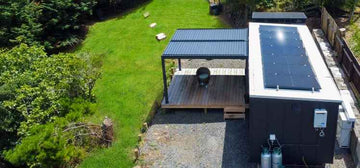

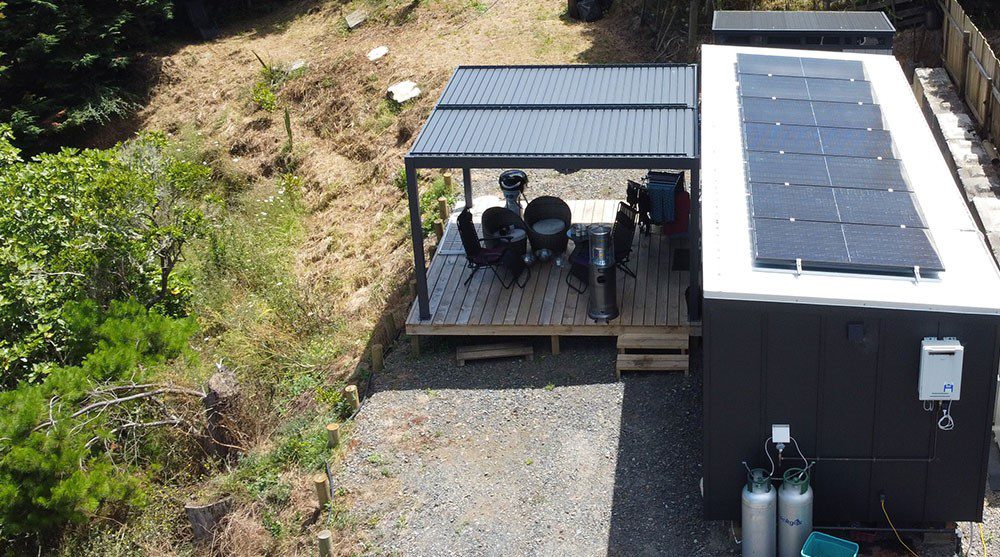

The AA Solar Waihi Studio Off-Grid Solar System is perfect for small lodgings such as tiny homes, sleepouts, granny flats (used full or part-time).  This System is designed for situations where daily power usage does not exceed 3-5kWh and his System will supply power where the continuous load max is 2400W AC.

We highly recommend increasing your days’ autonomy from one day’s reserve to cover those dull stormy days. We can add more panels to your System and upgrade the battery bank (see Popular Upgrades).

Every Kitset includes a free consultation with a Solar Engineer, this call can be used to help with selecting the kitset/Customisation or advice with respect to installation and certification.

System Inclusions:

  • Fully integrated Off-Grid power System (can be offered as a prewired panel upon request)
  • 6 x 455W Solar Panel Silver PERC Half Cell
  • 48V 200Ah C10 Battery Bank
  • Inverter/Charger
  • Temperature Sensor
  • Tilt Mounting Kit
  • Comprehensive Installation kit: fuses, cables, adjustable pitch mounting system, clips, screws etc.
  • A complete set of documentation for electrical registration and sign-off

Tell Me More:

This Waihi Studio Off-Grid Solar PV System is the ideal System for people expecting to use an average of 3-5kWh/day and where the amount of load required is 2.4kVA continuous and up to 4.8kVA 5sec peak (values at 25°C).  It comes with a 2.73kW Solar Array and a 9.6KWh Battery bank.

At the heart of this Off-Grid System is the inverter/charger that provides a central unit to monitor and control all aspects of the System.  We also include conduits, cables and miscellaneous items for the System that comply with AS/NZ Standards.  We can supply the System prewired upon request.

AA Solar customise Solar Kitsets to suit your specific power needs and location.

How Much Power Will I have?

Your System has six panels, the 2.73kW solar arrays’ average daily power production will be between 4-6kWh in winter and up to 9-12kWh in summer.

Pro Tip: For year-round living, we highly recommend adding an auto-start generator. To provide backup power during periods when the weather is bad, and your total solar generation is not enough to cover your energy needs and keep your battery bank full.

What Can Be Powered?

This System can meet all the power requirements of a typical tiny home with gas cooking and hot water, provided that the total power draw at any one time does not exceed 2.4kVA continuous.

  • Up to 10 LED Lights
  • Small under bench or Dometic Fridge
  • TV with power rating less than 400W (LED/LCD up to 40″)
  • And all small appliances such as jug, toaster, microwave as long as they have a maximum power rating under 1,000W; which should be used one at a time.
  • Small washing machine on a cold wash

This System can not support high wattage equipment such as electric induction cooking and ovens.



Note: AC loads must stay within the inverter’s limitations.

° = Energy efficient

Warranties:

PV modules – Twenty Five-year linear power and ten-year material & workmanship

Inverter/charger – Two-years

Battery – Five-years Conditional Warranty

Mounting System – 10-years

*We will provide a detailed estimate tailored for your specific needs; prices are an indication. They are subject to change due to customisation, shipping, or supplier price changes.  All PV generation figures are Auckland based, with PV modules facing True-North pitch without shading.  No system installation, inspection, commissioning, and maintenance allowance in this kit price.  Installations shall be in accordance with NZ law, regulations and associated standards.  Systems are wired to the main distribution board.  It is highly recommended that any system with less than four days of autonomy have an auto-start generator installed.



^ For Off-Grid PV Systems, the way you use power throughout the year and over a 24hr period will alter the system performance.  Normalised profiles have been used to provide kitset examples.

Popular Upgrades

All systems can be tailored to your individual needs by our highly qualified solar engineers.  Our most common upgrade provides backup power for low light days.



One Day AutonomyTwo Day AutonomyFour Day Autonomy
$10,930* inc GST$15,080* inc GST$27,570* inc GST



We can also lift the available power with a Lithium Battery/Inverter Package, which delivers more power while taking up less space.



Additional information

Days Autonomy

One Day, Two Days, Four Days

Brochure

Waihi Brochure
