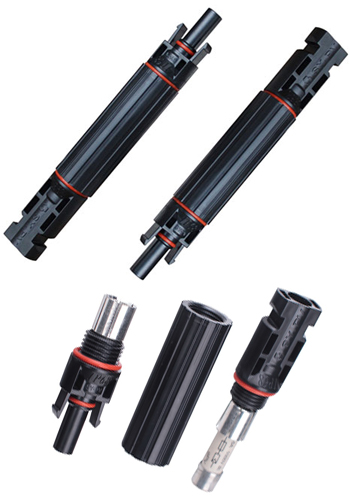

MC4 Inline Fuse Holder

$28.29

MC4 Inline Fuse Holder is compatible with MC4 connectors suitable to solar cable 2.5 mm2,
4mm2 and 6mm2 in solar connection projects.

Use with PV Inline Fuses (sold separately)

Description

MC4 Inline Fuse Holder is compatible with MC4 connectors suitable to solar cable 2.5 mm2,
4mm2 and 6mm2 in solar connection projects.

Use with PV Inline Fuses (sold separately)

It enables quick and reliable connection of the solar cables to the photovoltaic system (solar panels, converters).

  • Compatible with MC4 cable coupler solar connector PV-KBT4/KST4.
  • Rated voltage up to 1000VDC
  • Rated Current 10A-20A
  • 15 Years of production experience in solar connectors
  • TUV approved & Quick and easy to install
  • Protection class IP68 Suitable for outdoor harsh environments
  • Stable connection & Reducing maintenance cost

Specification of MC4 Inline Fuse Holder

MC4 Inline Fuse Holder

 mc4 inline fuse Product NO. SY-CF4A
 Insulation material PPO
 Rated Voltage TUV 1000 DC/ UL 600V DC
 Rated Current 20A-30A
 PV Fuse 10x38mm (1-20A)
 Test voltage 6KV(50Hz,1Min)
 Contact material copper, tin plated
 Contact resistance less than 0.5 m ohm
 Degree of protection IP68
 Pin dimension 4.0 MM

ABOUT US

At AA Solar, we are passionate about helping our customers harness the power of the sun, to give them greater energy freedom, lower costs and a clean, safe energy alternative. We tackle all solar projects, from RVS, Boats, and agricultural equipment to premium residential homes. No job is too big or too small for this talented dedicated crew of solar specialists.

Benefits of an AA Solar system

  • Custom designed to meet your needs
  • Friendly experienced professionals
  • Can do attitude
  • Great pricing and service
  • Best in class, for warranties

ABOUT SERVICES

Being a custom business we: design, specify, source, install and guarantee the right solar system for you. With a track record of over 30 years, you know we are here to support you now, and for many years to come.

Our expert team will explain our products and designs and help demystify solar PV and batteries, so you can sit back and enjoy the benefits of a well designed bespoke solar system

Or if you are keen to do it yourself, or simply need replacement components for an existing system, we can advise and supply these too.

We stock a wide range of products including the latest batteries, inverters, solar panels, solar controllers, monitors, fuses, cables and more.

Additional information

Weight0.037 kg
Dimensions14 × 2.5 × 2.5 cm
